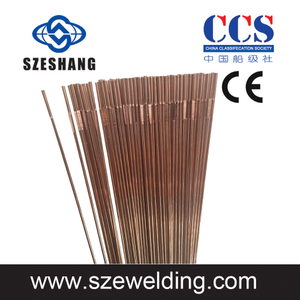

ER70S-3 Copper Coated TIG Filler Wire,Mild Steel TIG Welding Rod, ER70S-3 TIG Welding Rod

ER70S-6 TIG Welding Wire Made In China,Argon Arc Welding Wire

ER70S-3 Copper Coated TIG Filler Wire,Mild Steel TIG Welding Rod, ER70S-3 TIG Welding Rod

Primary Use: Designed for Gas Tungsten Arc Welding (GTAW/TIG) and Gas Metal Arc Welding (GMAW/MIG) on mild steel.

Deoxidizers: The silicon (Si) and manganese (Mn) content helps prevent porosity by reacting with oxygen in the weld pool, making it suitable for welding steel with mild surface contamination (mill scale, light rust). However, it has less deoxidizer content than ER70S-6.

Shielding Gases: Your information is correct. It is commonly used with:

C25 (75% Ar / 25% CO2): The most common mixed gas for GMAW.

90% Ar / 10% CO2: Provides a more stable arc and better bead appearance than C25, especially for short-circuit transfer.

100% CO2: A cost-effective option, but results in more spatter, a less stable arc, and deeper penetration.

For TIG welding (GTAW), it is used with 100% Argon.

Applications: Perfectly summarized as general fabrication for furniture, equipment, trailers, structures, etc., where the steel is clean to moderately scaled.

Quantity:
Model:	ER70S-3
Brand:	Szeshang

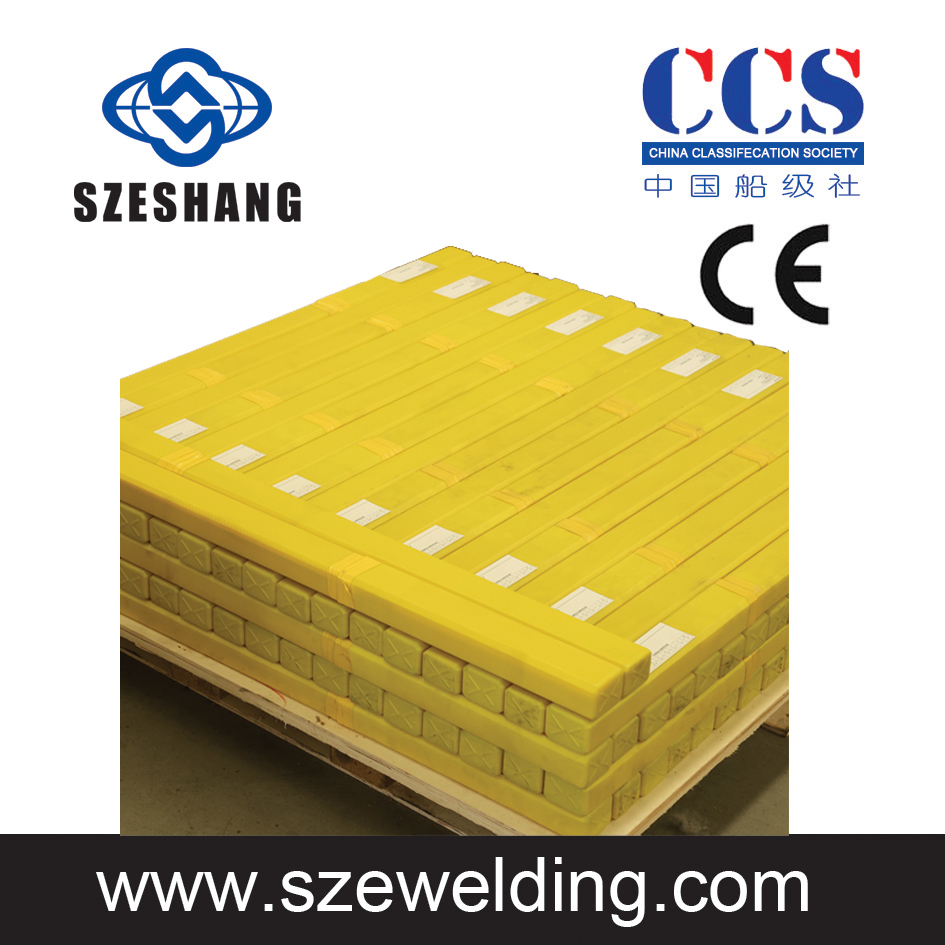

Package:	tube,Carton
Certificate:	ISO,CE,ABS,CCS,
Weight:	5kg,10kg
Delivery time:	15 days
Availability:





Inquire Add to Basket

Model:
ER70S-3
Brand:
SZESHANG

Product Description

ER70S-3 Copper Coated TIG Filler Wire,Mild Steel TIG Welding Rod, ER70S-3 TIG Welding Rod

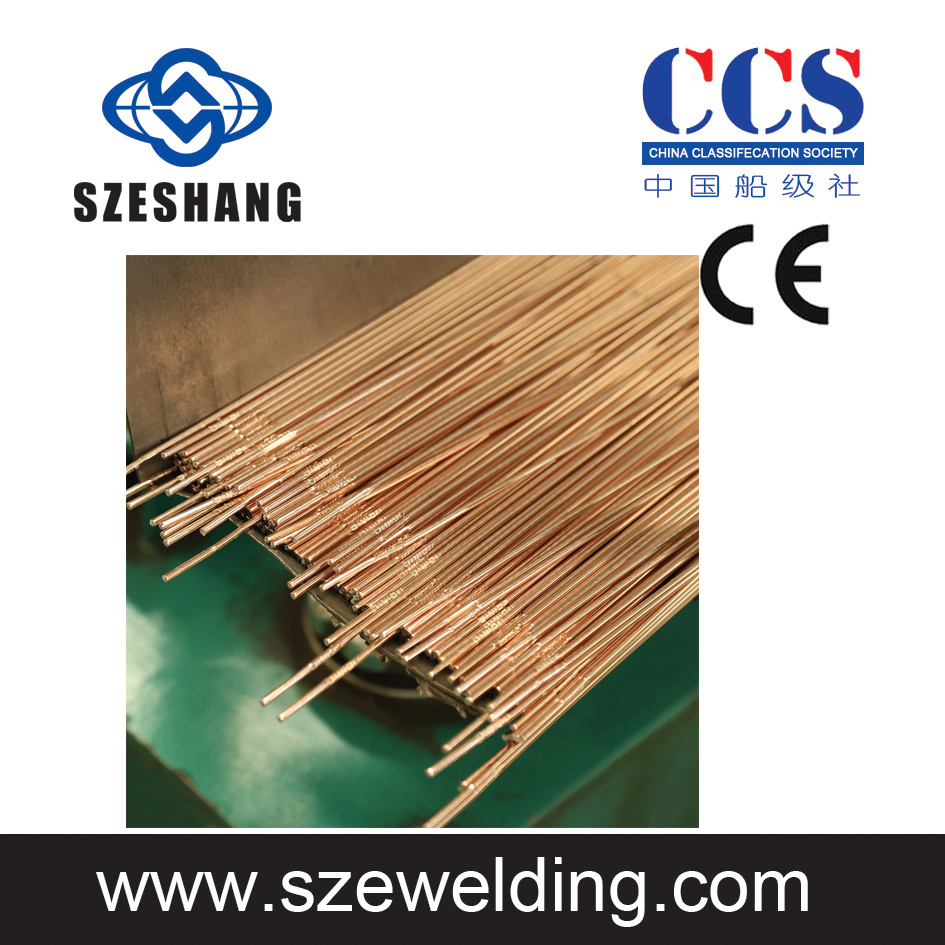

TIG Welding wire

MIG TIG Solid Welding Wire ER70S-6 Argon Arc Welding Wire

焊丝型号 Model	符合标砖 GB/T AWS Meeting the standards GB/T AWS	化学成分（质量分数）% Chemical component(Mass fraction)					熔敷金属力学性能 Mechanical Properties of Deposited Metal				应用 Application
焊丝型号 Model	符合标砖 GB/T AWS Meeting the standards GB/T AWS	C	Mn	Si	S	P	Rm(Mpa)	Rp0.2(Mpa)	A(%)	Akv(J)	应用 Application
ER50-G	GB/T ER50-G AWS ER70S-G JIS YGW11	≤0.15	0.85~1.6	0.4~1.0	≤0.03	≤0.03	≥490	≥345	≥22	≥27(-30℃)	主要用于低合金钢高强钢的焊接 Applied to the welding of low alloy high strength steel
ER50-6	GB/ T ER50-6 AWS ER70S-6 JIS YGW12	0.06~0.15	1.40~1.85	0.8~1.15	≤0.035	≤0.025	≥500	≥420	≥22	≥27(-30℃)	主要用于焊接碳钢、低合金钢结构 Applied to the welding of low carbon steel and low-alloy steel structure
ER50-3	GB/T ER50-3 AWS ER70S-3 JIS YGW16	0.06~0.15	0.9~1.4	0.45~0.75	≤0.035	≤0.025	≥500	≥420	≥22	≥27(-18℃)	主要用于碳钢低合金钢的焊接 Applied to the welding of low carbon steel and low-alloy steel structure
ER60-G	GB/T ER60-G AWS ER80S-G	≤0.10	1.4~1.90	0.50~0.95	≤0.025	≤0.025	≥620	≥490	≥19	≥47	主要用于低合金钢高强钢的焊接 Applied to the welding of low alloy high strength steel
ER49-1	GB/T ER49-1	≤0.11	1.8~2.10	0.65~0.95	≤0.03	≤0.03	≥490	≥372	≥20	≥47(室温)	主要用于焊接碳钢、低合金钢结构 Applied to the welding of low carbon steel and low-alloy steel structure
