Stainless Steel Welding Wire: ER308, ER308L, ER308LSi Selection Guide

Views: 0 Author: Site Editor Publish Time: 2025-12-11 Origin: Site

Stainless Steel Welding Wire: ER308, ER308L, ER308LSi and how to choose them?

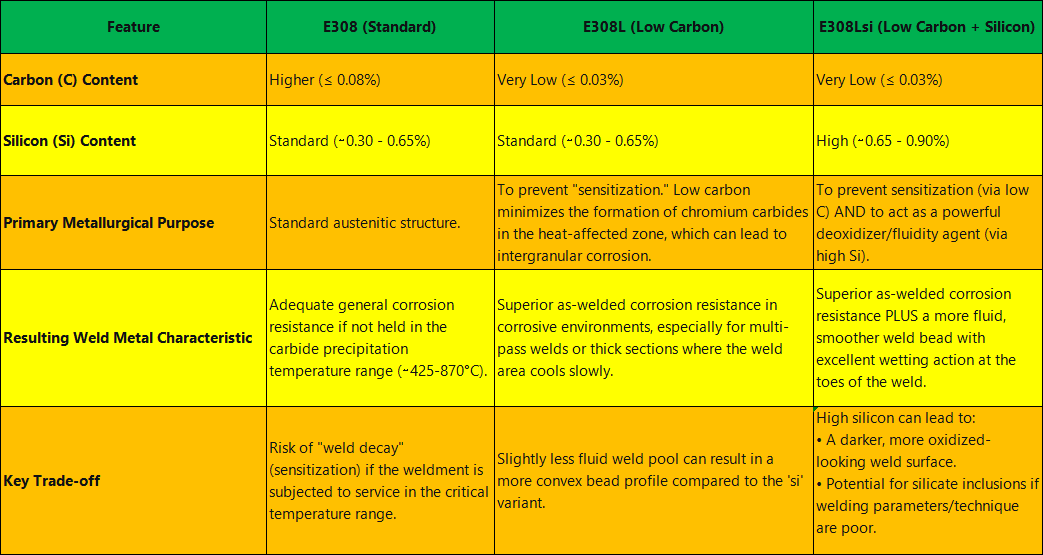

Core Difference: Composition

The key distinctions are defined by two elements:

Carbon (C): 'L' denotes Low Carbon (~0.03% max) vs. Standard (~0.08% max).

Silicon (Si): 'Si' denotes High Silicon (0.65-0.90%) vs. Standard (0.30-0.65%).

Element Impact:

The "L" (Low Carbon): Prevents Sensitization (Intergranular Corrosion) in the weld area, crucial for corrosion resistance in the "as-welded" condition.

The "Si" (High Silicon): Enhances weld pool fluidity, arc stability, and bead wetting, improving operability and appearance.

How to Choose the Right Stainless Steel Welding Wire?

Choose ER308L or ER308LSi (Low Carbon) Welding Wire when:

The welded part will serve in a corrosive environment (e.g., chemical, food, marine).

Welding 304L base metal.

Post-weld heat treatment is not possible.

Choose ER308 (Standard Carbon) stainless welding wire only when:

The assembly will undergo full post-weld solution annealing.

Application is non-corrosive, and higher ambient temperature strength is a specific, calculated requirement.

Choose ER308LSi (over ER308L) wire when:

Prioritizing optimal weldability—excellent for MIG welding, thin gauge, out-of-position work, or imperfect fit-up.

Seeking superior bead profile and wetting.

Choose ER308L (over ER308LSi) welding wire when:

TIG welding cosmetic or code-critical joints where a bright, clean finish is paramount.

Specific procedure specifications limit silicon content.

Summary:

For most MIG applications, ER308LSi offers the best balance. For critical TIG work, ER308L is standard. Always choose an 'L' grade for corrosion resistance unless post-weld heat treatment is guaranteed.

ER308，ER308L，ER308LSi

#StainlessSteelWeldingwire #WeldingWire #FillerMetal #ER308 #ER308L #ER308LSi #Fabrication #CorrosionResistance #TechnicalGuide

Shandong Szeshang Welding Materials Co., Ltd.

If you have any confused also, leave message to us please.
